Arshya Pipe Fittings
Arshya Pipe Fittings
EN 10253 Type B Specialists

Arshya Pipe Fittings Pvt Ltd · Mumbai, India

EN 10253-2 / -4 Type B PED 2014/68/EU compliant EN 10204 3.1 / 3.2

EN 10253-2 / -4 Type B
Buttweld Pipe Fittings

Manufacturer of EN 10253-2 / -4 Type B buttweld pipe fittings in all materials — carbon steel, alloy steel, stainless steel, duplex, super duplex, and nickel alloys. Full EN 10204 3.1 material certification. PED 2014/68/EU compliant. Exporting to 30+ countries across Europe, UK, Middle East, and Asia.

Request a Quote Browse EN Grades
Type B
Full service pressure per EN 10253-2 / -4. Type A also supplied.
3.1 MTC
EN 10204 3.1 material test certificate on every order
30+
Countries supplied — Europe, UK, Gulf, Asia Pacific
PED
PED 2014/68/EU certified — CE marking available

Our Product Range

Buttweld pipe fittings to EN 10253-2 / -4 Type B and ASME B16.9 — ½″ to 48″ NB, in carbon, alloy, stainless, duplex and nickel alloys.

90° and 45° carbon steel buttweld pipe elbows — Arshya Pipe Fittings
Elbows — 90° & 45°
 Equal and reducing carbon steel buttweld pipe tees — Arshya Pipe Fittings
Tees — Equal & Reducing
 Concentric and eccentric carbon steel buttweld reducers — Arshya Pipe Fittings
Reducers — Conc. & Ecc.
 Carbon steel buttweld pipe caps — Arshya Pipe Fittings
Pipe Caps

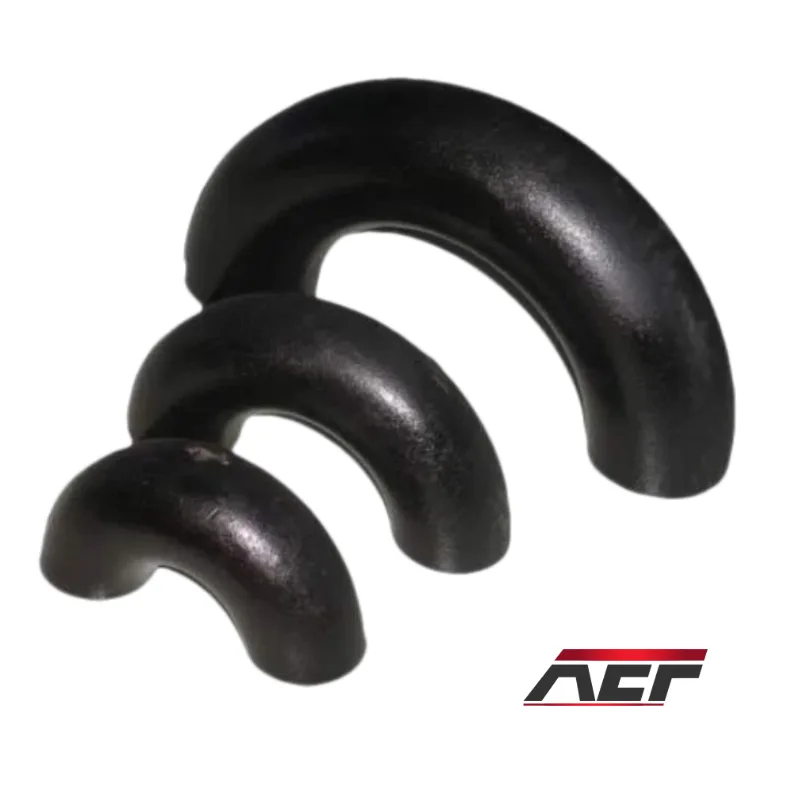

 Long-radius pipe bends in three sizes — Arshya Pipe Fittings
Long-Radius Bends

Special Fittings & Bends

EN 10253 Type B Tees
Equal & reducing, full service pressure
EN 10253 Type B Elbows
45° / 90° / 180°, reinforced intrados
5D Pipe Bends
Piggable induction bends
3D Pipe Bends
R = 3 × D, tangents to order
Custom Length Bends
Any angle, made to drawing
Barred Tees
Pig guide bars for pipelines
Sweepolets
MSS SP-97 contoured branch outlets
Deutsch
Formstücke Typ B, Induktionsbogen 5D

Trusted by leading EPCs, refineries, power plants & OEMs

IndianOil · L&T · BHEL · thyssenkrupp · ISGEC · Emerson · Voltas · Carrier · MAN Energy Solutions

See our clients & sectors →

Material Grades — EN 10253-2 / -4 Type B

We supply EN 10253-2 / -4 Type A and Type B; Type B is our specialism. EN 10204 3.1 certificate standard.

Carbon Steel
P235GH · P265GH · P355NL1
General pressure and high-temp service. Equivalent to ASTM A234 WPB.
Alloy Steel (CrMo)
P11 · P22 · P5 · P9 · P91 · P92
High-temperature creep service. PWHT certified. Power plant & refinery.
Stainless Steel
304L · 316L · 316Ti · 347 · 904L · Duplex 2205 · Super Duplex 2507 · 254 SMO
PRE from ~18 to ≥43. EN 10088-4 chemistry.
Nickel Alloys
Inconel 600/601/625 · C-276 · C-22 · C-4 · Monel 400 · Alloy 825
Extreme corrosion and high-temperature service.
All EN Grades →
Full grade selector with PRE, chemistry, and applications

Industries Served

EN 10253-2 / -4 Type B fittings for demanding process industries.

Power Generation

Supercritical steam, HRSG, FGD systems. P91, P92, Alloy 800H.

 Oil Refinery

Hydrocracker, hydrotreater, FCCU. CrMo grades P5–P22.

 Offshore & Subsea

NACE MR0175. Duplex, Super Duplex, Inconel 625.

 Chemical Process

HCl, H₂SO₄, HNO₃, chloride. C-276, 904L, Alloy 825.

 Pharmaceutical

WFI, PW, clean steam. 1.4404 316L (delta ferrite FN). Ra ≤0.8 µm.

 Desalination

SWRO, MSF, MED. Super Duplex 2507, Alloy 825, Inconel 625.

 LNG & Cryogenic

−196°C service. 304L, 316L. Cryogenic Charpy V-notch impact testing.

 FGD & Pulp / Paper

FGD scrubbers, bleach plant. Hastelloy C-22, Duplex 2205, 316L.

Markets We Serve

ASME B16.9 and EN 10253 fittings for end users, EPC contractors and distributors worldwide.

Europe & UK

EN 10253-2 / -4 Type B, PED and AD 2000 documentation.

 USA & Canada

ASME B16.9 in ASTM A234, A403, A420, A815 and A860 grades.

 Latin America

Mining, oil and gas, refining, pulp and paper.

 Africa

Oil, gas, LNG, power and mineral processing.

 Southeast Asia

Nickel HPAL, power, refining and petrochemicals.

 Distributors & Stockists

Mixed container loads of standard sizes and grades.

Certifications & Compliance

EN 10204 3.1 / 3.2

Material test certificates on every shipment. Third-party 3.2 via TÜV, Bureau Veritas, Lloyd's on request.

PED 2014/68/EU

Pressure Equipment Directive compliance. CE marking on qualifying assemblies.

NACE MR0175 / ISO 15156

Sour service compliance for offshore and upstream oil & gas. Hardness certificates available.

PMI — Positive Material Identification

XRF PMI on alloy steel and stainless/nickel alloy fittings. PMI report per heat/lot.

ISO 9001:2015

Quality management system certified. Full heat and lot traceability.

TÜV & Lloyd's

Third-party inspection and witness testing by TÜV, Lloyd's Register, DNV on request.

Latest Technical Articles

Material selection, welding, and European pressure codes — by our engineering team.

All articles →
16 October 2026 · Procurement · EN 10253-2 · Purchase Orders

How to Order EN 10253-2 Type B Fittings: A Purchase-Order Template for European Buyers

Clause-by-clause purchase-order template for EN 10253-2 Type B buttweld fittings: Type B wording, bore matching, 3.1/3.2 certificates, PED and packing.
16 October 2026 · Carbon Steel · EN 13480 · Steam Service

P265GH vs P235GH Buttweld Fittings: Which to Specify for EN 13480 Steam Lines

P235GH or P265GH for EN 10253-2 fittings on EN 13480 steam lines? Compare strength, allowable stress, wall, welding and how to match fittings to pipe.
16 October 2026 · Stainless & Duplex · EN 10253-4 · Sourcing

Sourcing EN 10253-4 Stainless Fittings from India: Documents, Inspection and Lead Times for EU Projects

Buying EN 10253-4 stainless or duplex fittings from India for an EU project? The documents, inspection, PED evidence and lead-time planning to ask for.

Ready to Source EN 10253-2 / -4 Type B Fittings?

Send your material specification, fitting schedule, and required certifications. We respond within 24 hours on business days.

Request a Quote
